Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ETCR
  • Model Number: ETCR6200
  • Display Type: Digital Only
  • Measuring Range: 0mA~60.0A AC/DC
  • Accuracy Class: ±2%rdg±5dgt (23℃±5℃, below 75%rh)
  • Supply Voltage: 9V
  • Operating Temperature: -10℃-0℃ and 40℃-50℃, within 2%rdg
  • Dimensions: LWH: 168mm*65mm*34mm
  • Clamp mouth:: 25*30mm

Packaging & Delivery

Packaging Details: 30pcs/carton
Delivery Detail: 3 days after received payment



          ETCR6200 High Accuracy DC Clamp Leaker----Manufactory,ISO





















1.Capable of measuring DC

2.Range: 0.0mA~10A

3.Data upload: RS232 interface

4.Data memory: 99 sets

5.Clamp mouth: 25*30mm





Technical Specification



Model
ETCR6200
Function
Measurement of AC/DC current, leakage current, repairing the car circuit.
Power Supply
Zn-Mn dry battery,6F22,9V, continuous use for 30h
Test Mode
Clip-on CT, noncontact measurement
Clamp Size
25mmX35mm
Measurement Range
0mA~60.0A AC/DC
Resolution
1mA AC/DC
Accuracy
±2%rdg±5dgt (23℃±5℃, below 75%rh)
Display Mode
Four digits LCD display
Dimension
LWH: 168mm×65mm×34mm
LCD Dimension
35mm×21.5mm; display domain: 32mm×15mm
Sampling Rate
2 times/s
Frequency
AC: 45Hz-400Hz
Polarity Indication
DC current auto identified and display“—”
Test Position
Tested wire in the jaw center
Range Shift
Automatically
Line Voltage
Do not exceed AC 600V
RS232 Interface
Data stored in the memory of the meter via RS232 upload to PC
Com-Configure
Baud rate:9600, data bit:8, stop bit:1, check bit: NONE
Data Memory
99 units, FULL blinks when the memory is full
Reading Hold
DH indicating the reading is hold
Out of Range
OL indicating the current is out of range
Auto Power-off
5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage
    Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed.
Weight
180g (including the battery)
Working Current
10mA
Humiture
-10℃-50℃,below 80%rh
Limit Temperature Error
-10℃-0℃ and 40℃-50℃, within 2%rdg
Humiture Storage
-10℃-60℃,below 70%rh
Insulating Strength
AC 3700V/rms. (between the alloy of the clamp and the housing)
Applicable safety rules
IEC1010-1, IEC1010-2-032, pollution:2, CAT Ⅲ(600V)
Accessories
Meter: 1pc; toolkit: 1pc; RS232 communication line: 1pc; disk: 1pc; case: 1pc.

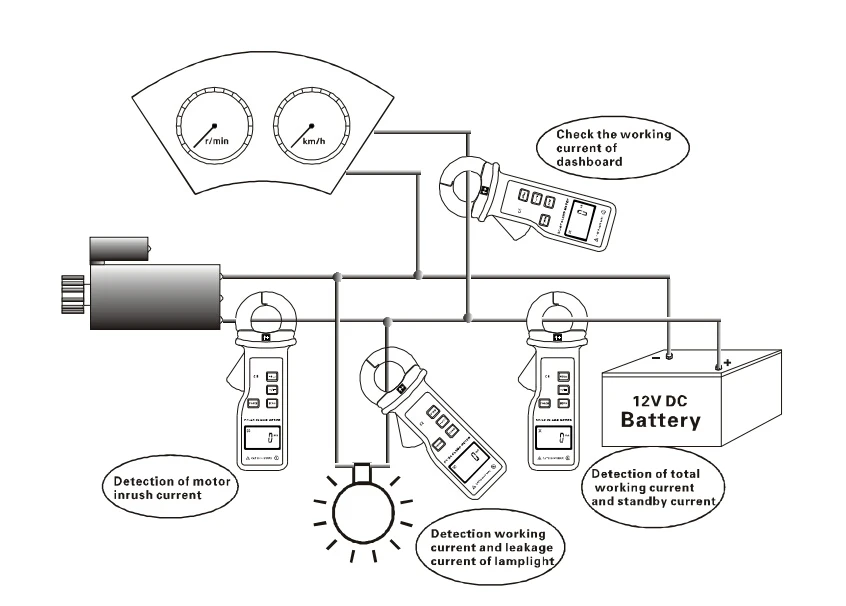

III. Field application
